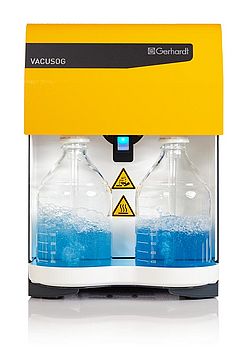

Scrubber VACUSOG

Say goodbye to corrosive, toxic fumes.

Fast - With its suction capacity of 120 l/min, the VACUSOG scrubber cleans and neutralizes acidic fumes quickly and effectively.

Effective - The 4-stage separation system removes even traces of SO₂ and SO₃ reliably.

Independent - Free yourself of the need for a water supply and of potential pressure fluctuations. The built-in vacuum pump gives you clean air when and where you need it.

Enquiry VACUSOG

Absolutely clean

Clean your exhaust air effectively in 4 stages

Stage 1: Neutralization of acidic fumes

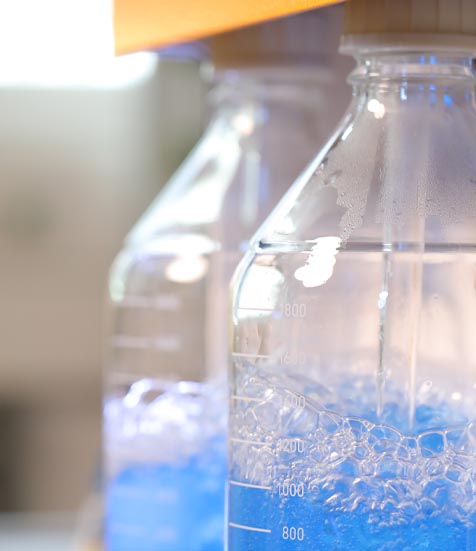

Stage 2: Gas scrubbing
Stage 3: Separation of the condensate by steam traps

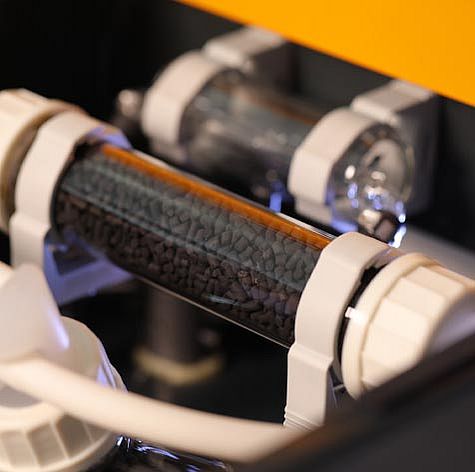

Stage 4: Absorption of the remaining residual gases by means of an alkaline-coated activated carbon filter

Kjeldahl digestion is possible without corrosive vapours

Adjustable rather than one-size-fits-all: to prevent your samples from drying out during digestion you can regulate the suction power by simply turning a knob.

Kjeldahl digestion from aqueous samples tends to push suction scrubbers to their limits. The optional additional cooling unit for the VACUSOG ensures efficient wet separation even with aqueous samples, thereby ensuring clean air in the lab.

No matter what the scale of your Kjeldahl digestion is, you can connect VACUSOG directly to any C. Gerhardt digestion unit, from the conventional apparatus to the KJELDATHERM block digestion unit.

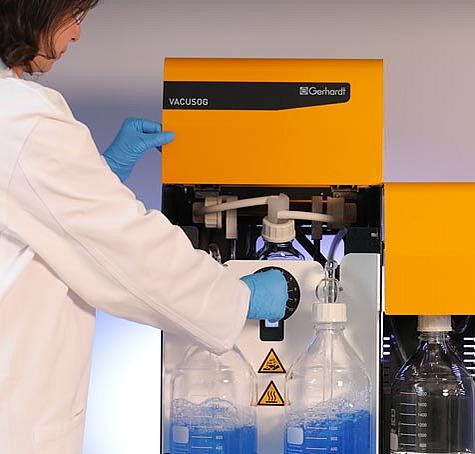

Easy operation and maintenance

The well-thought-out design has made all components easily accessible. This allows you to carry out maintenance tasks yourself quickly and easily.

But go a step further: in high-throughput mode, you’ll control the scrubber directly from the KJELDATHERM KT digestion unit and thus gain additional space.

Downloads

Flyer Vacusog - English

Product Data - Vacusog - English

VACUSOG

Order data	12-0779 VACUSOG
Dimension (W x D x H)	342 x 463 x 490 mm closed 342 x 463 x 720 mm open
Weight	22 kg
Scope of delivery	VACUSOG-Scrubber unit Isoversinic tubing connection Activated carbon for 400 - 600 samples Mains cable Operating instruction
